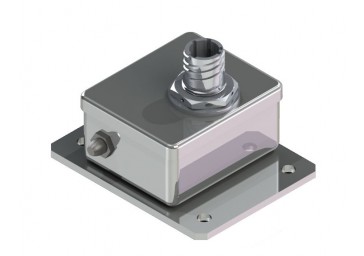

Hemispherical Latching D38999 Connector 3LO-882
- PDF spec sheetpdf
- Print Pageprint page
Description
Our Model 3LO-882 is a highly reliable latching inertia/impact switch used for various military and commercial aviation applications. The specified g level is preset at the factory. When predetermined g levels are exceeded by the aircraft in any direction, this switch will automatically turn on or off certain systems such as: voice or data recording, emergency lighting, and fire control. The device remains latched until manually reset. A D38999 connector ensures reliable termination in harsh environments. This unit is an excellent choice for helicopter applications.
-
Specifications
- Sensitivity: Hemispherical
- Contact Type: SPDT
- Contact Rating: 5.0A @ 28 VDC / 125 VAC
- Contact Resistance: Less than 0.5 ohm
- Insulation Resistance: 500 Mohms@500VDC
- Reset: Latching, manual reset
- G Range: 3 to 100
- Termination: Connector
- Seal: Hermetic 1 X 10-5 cc/sec
- Accuracy: 10%
- Damping: Undamped
-
Special Features
- Highly reliable and accurate
- Small and lightweight
- No power required
- Latching with manual reset
- Cockpit Voice Recorder CVR
- Flight Data Recorder FDR
- Emergency lighting
- Fire supression
- D38999 Connector
- Fast response time
