Unidirectional Momentary Co-Planer 6UO-629

Description

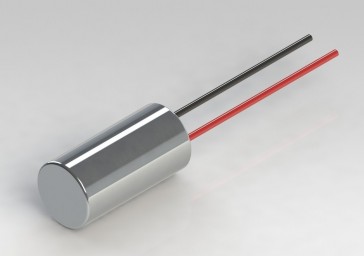

Model 6UO-629 is a small, high reliability, single axis inertia switch available with accuracy of +/- 10%. This unit has been used in a variety of commercial and military applications. Various models exist damped, undamped, normally open, and normally closed. Please contact our engineering department for more details.

  • Specifications

    • Sensitivity: Unidirectional
    • Contact Type: SPST NO
    • Contact Rating: 1.0A @ 28 VDC / 125 VAC
    • Contact Resistance: Less than 1.0 ohm
    • Insulation Resistance: 1000 Mohms@500VDC
    • Reset: Momentary, automatic reset
    • G Range: 0.2 to 10
    • Operating Temperature F: -55 to 250
    • Termination: Wire Leads
    • Seal: Hermetic 1 X 10-5 cc/sec
    • Accuracy: 10%
    • Damping: Undamped

  • Special Features

    • High reliability & accuracy
    • Small & lightweight
    • No power required
    • Custom leads available
    • Available damped or undamped
    • Palladium and Gold contacts
    • Normally Open or Normally Closed
    • Extremely accurate below 1g
    • Ideal for low G applications
