Omnidirectional Momentary Cable 3RO-928
- PDF spec sheetpdf
- Print Pageprint page
Description

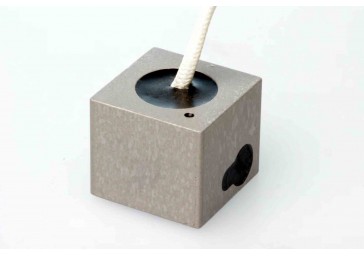

The Inertia Switch model 3RO-928 is a small, highly reliable inertia switch designed to sense g forces in any given direction. Often used as a crash detector, this instrument will operate repeatedly for hundreds of thousands of flight hours. True omni sensing makes this an excellent choice for many multi-axis applications. No power is required for operation.
-
Specifications
- Sensitivity: Omnidirectional
- Contact Type: SPST NO
- Contact Rating: 2.0A @ 28 VDC / 125 VAC
- Contact Resistance: Less than 1.0 ohm
- Insulation Resistance: 500 Mohms@500VDC
- Reset: Momentary, automatic reset
- G Range: 3 to 100
- Operating Temperature F: -55 to 250
- Termination: Cable
- Seal: Hermetically Epoxy Sealed
- Accuracy: 15%
- Damping: Undamped
-
Special Features
- True omnidirectionial
- Highly reliable & accurate
- Shielded cable termination
- Ideal for harsh environments
- Gold redundant contacts
- Small and Lightweight
- Less than 1 cubic inch
- No power required
